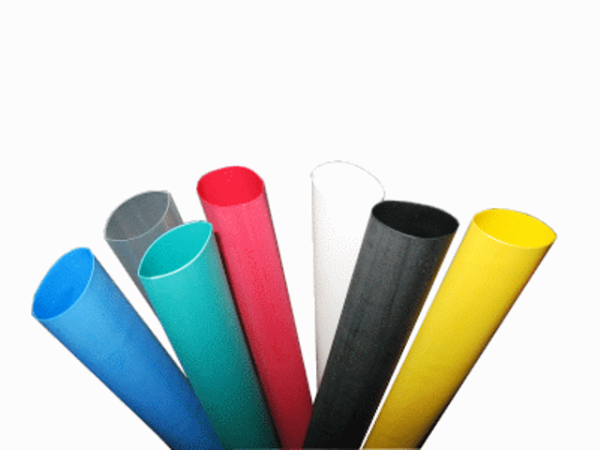

Heat Shrinkable Tube without adhesive Type S2401
Shrink ratio 2:1
Inner diameter before Shrinkage: 1,6mm.
Inner diameter before max Shrinkage: 0,8mm.
Wall Thickness after max Shrinkage 0,43mm.
Technical Data’s Heat Shrinkable Tube Type S2401
(Bracket values only for Color Clear):
Continuous Operating Temperature: - 55°C to +125°C. ( - 55°C to +105°C).
Minimum Shrink Temperature: +90°C. (+115°C).
Tensile Strength: 17,5 MPa min. (23 MPa min.)
Dielectric Strength: 28 KV/mm. (45 KV/mm).
Surface: Matt. (Transparent).
Printing on tube: None. (None).
Flame Retardant and Flexible. (Halogen free and flexible).
Material: Polyolefin. (Polyolefin).
Shrink Ratio: 2:1. (2:1).
Datasheet BLACK
Datasheet CLEAR
