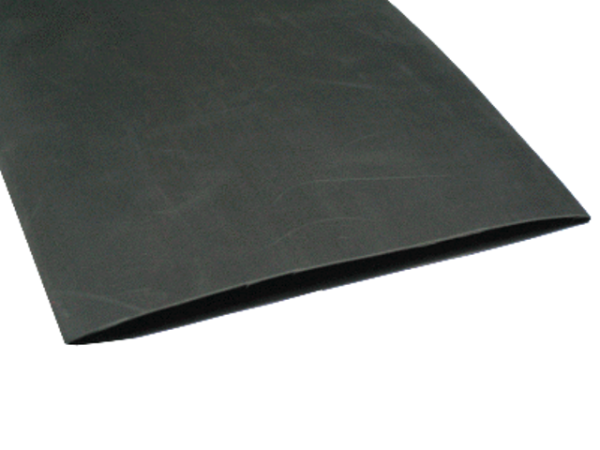

Heat Shrinkable Tube without adhesive Type S2401
Shrink ratio 2:1
Inner diameter 38,1mm before Shrinkage
Inner diameter 19,1mm after Shrinkage.
Wall Thickness after max Shrinkage 1,02mm.
Technical Data’s Heat Shrinkable Tube Type S2401
(Bracket values only for Color Clear):
Continuous Operating Temperature: - 55°C to +125°C. ( - 55°C to +105°C).
Minimum Shrink Temperature: +90°C. (+115°C).
Tensile Strength: 17,5 MPa min. (23 MPa min.)
Dielectric Strength: 28 KV/mm. (45 KV/mm).
Surface: Matt. (Transparent).
Printing on tube: None. (None).
Flame Retardant and Flexible. (Halogen free and flexible).
Material: Polyolefin. (Polyolefin).
Shrink Ratio: 2:1. (2:1).
Available Colors: Black, (Clear).
Datasheet BLACK
Datasheet CLEAR
Installation Instruction
| Item information |
Value |
| Content: |
1,00 Running Meter
|
Product safety information
Manufacturer information:
SEI Interconnect Products (Europe) Ltd.
Oststrasse 89
Schleswig-Holstein
Norderstedt, Deutschland, 22844
