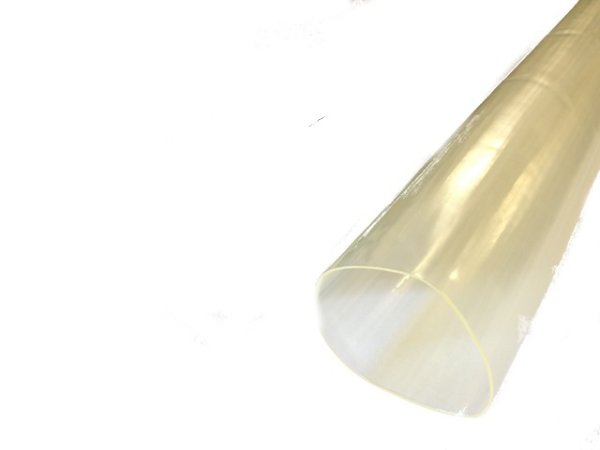

Heat Shrinkable Tubing with adhesive Type S2451
Shrink Ratio 3:1
Inner diameter before Shrinkage: 19,0mm.
Inner diameter after max Shrinkage: 6,0mm.
Wall Thickness after max Shrinkage: 1,80mm.
Double Wall: Outer Wall Polyolefin, inner wall adhesive. Flexible Polyolefin Tube with adhesive and low shrink temperature. Universal applicable for Electro- and Automotive Industry.
Technical Data’s Heat Shrinkable Tube Type S2451
(Bracket values only for Clear Color):
Continuous Operating Temperature: - 55°C to +110°C. ( - 55°C to +105°C).
Minimum Shrink Temperature: +120°C. (+110°C).
Tensile Strength: 18 MPa min. (19 MPa min.)
Dielectric Strength: 30 KV/mm. (30 KV/mm).
Surface: Matt. (Clear).
Printing on tube: None. (None).
Flame Retardant and Flexible. (Flexible and Halogen free).
Material: Polyolefin with adhesive. (Polyolefin with adhesive)
Shrink Ratio: 3:1. (3:1)
Available Colors: Black, (Clear).
Datasheet BLACK DE
Datasheet CLEAR DE
Datasheet BLACK EN
Installation Instruction
| Item information |
Value |
| Content: |
1,20 m
|
Product safety information
Manufacturer information:
SEI Interconnect Products (Europe) Ltd.
Oststrasse 89
Schleswig-Holstein
Norderstedt, Deutschland, 22844
