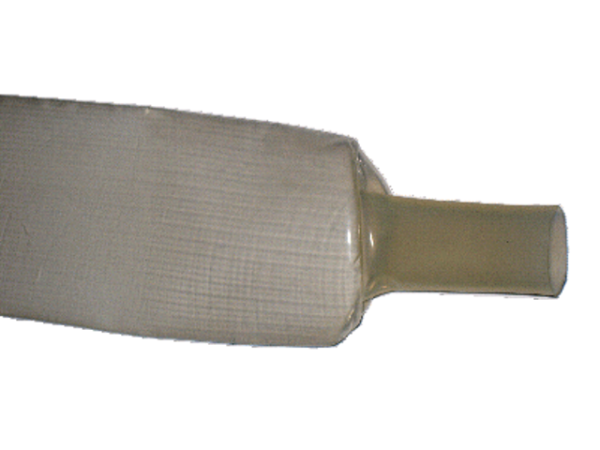

Heat Shrinkable Tubing S24KC (Kynar®* PVDF)
Shrink Ratio 2:1
Inner diameter before Shrinkage: 6,4mm.
Inner diameter after max Shrinkage: 3,2mm.
Wall Thickness after max Shrinkage: (nom) 0,30mm.
Highly flame retardant, semi rigid, thin wall Kynar®* PVDF Tubing.
Very good abrasion resistance.
Very good resistant to chemicals and solvents, also in high temperature environments up to 175°C.
Specification MIL-DTL-23053/8
Technical Data’s Heat Shrinkable Tube Type S24KC (Kynar®* PVDF)
Continuous Operating Temperature: - 55°C to +175°C.
Minimum Shrink Temperature: +175°C.
Tensile Strength: 50 MPa min.
Tensile Strength: 31,5 KV/mm.
Printing on tube: None.
Highly flame retardant.
Semi rigid.
Material: Kynar®*PVDF (Polyvinyliden fluoride) Fluoropolymer.
Shrink Ratio: 2:1.
Available Colors: Clear.
*Kynar is a trade mark of Atofina.
| Item information |
Value |
| Content: |
300,00 m
|
